The most common mistake people make when adding a water filter to their cold plunge isn’t picking the wrong cartridge—it’s plumbing the lines in the wrong order. Hooking a filter up ahead of the chiller can starve the internal pump of intake water, causing noisy cavitation and low-flow error codes.
For integrated setups, your water should always follow one continuous loop from the Tub Outlet into the Chiller, through the Filter Housing, and back to the Tub Inlet. In this guide, we’ll show you exactly how to plumb your lines correctly, seal your fittings without leaks, and bleed out trapped air on the first try.
Table of Contents ▲
Why You Need a Cold Plunge Chiller Filter
Plumbing a dedicated cold plunge chiller filter into your loop pays off in three big ways:
-
Saves the Chiller’s Cooling Plates: Cold plunge chillers move water across very narrow titanium heat-exchange channels. Body oils, stray hair, dead skin, and dust form a greasy layer inside these passages. Over time, that buildup forces the compressor to run twice as hard to reach the same temperature.
-
Stops "Low-Flow" Alarms (E3 Errors): Chillers use water flow sensors to keep from freezing up. When sediment clogs the lines, water slows down, and the machine shuts off on an automatic error.
-
Fewer Full Tub Refills: Mechanical filtration catches the tiny floaters that ozone or water chemicals cannot dissolve on their own, keeping your water crystal clear for months instead of weeks.
What You Need Before You Start
Before cutting tubes or unboxing parts, make sure you have these basics nearby:
| Part / Tool | What to Look For | Why It Matters |
| Filter Housing | Heavy-duty canister with an Air Release Button on top | Holds the cartridge and handles continuous water pressure |
| Filter Cartridge | 20-Micron Pleated Sediment Filter | Catches fine debris without choking water flow to the pump |
| Fittings | 1/2" FNPT housing ports with 1/2" MNPT connectors | Hooks up cleanly to standard cold plunge hoses |
| Hoses | 1/2" ID braided, kink-resistant tubing | Won’t collapse or flatten under cold water suction |
| Tape & Clamps | Teflon tape & stainless steel hose clamps | Stops small drips and keeps hose connections locked tight |
Quick Tip: An all-in-one kit like the Plunge Chill Water Filter Upgrade saves you an extra trip to the hardware store. It comes pre-packed with the housing, 1/2" brass fittings, and three 20-micron cartridges ready to install.
Cold Plunge Water Filter Upgrade
Getting the Water Flow Direction Right
The single biggest mistake people make is hooking their lines up backward.

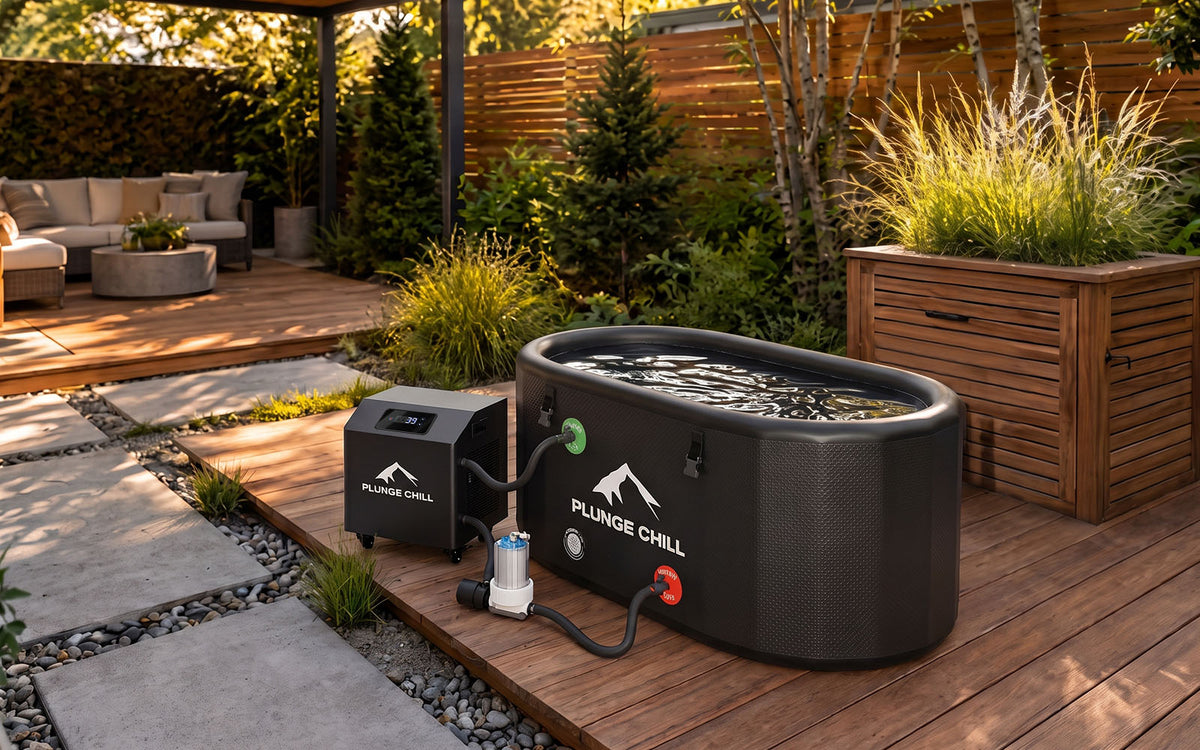

If your plunge uses an external filter chiller unit, this is the exact route your water should follow:
Why Put the Filter After the Chiller?
A common question DIY builders ask is: "Shouldn't the filter catch gunk before it hits the chiller?"
Integrated chillers use built-in water pumps designed to push water out under pressure, not pull it through tight filter folds. Putting a 20-micron filter before the chiller can starve the pump of intake water, causing noisy pump cavitation and low-flow errors. Placing the filter on the chiller's outgoing line lets the pump push water freely through the pleats, returning clean, polished water back into the tub.
COLD PLUNGE CHILLER
Step-by-Step Installation Guide
1. Set the Housing in Place: Keep lines straight and strain-free.
Set the filter upright on a flat, solid surface between your chiller and the tub's return port. Make sure your hoses have plenty of slack so they don't bend sharply or pull hard on the plastic connection ports.
2. Tape and Screw in the Connectors: Stop leaks before they start.
Wrap the male threads of your 1/2" MNPT connectors with 5 to 6 clockwise turns of Teflon tape. Screw them into the housing's inlet and outlet ports. Hand-tighten them first, then use a wrench for another half to full turn until snug. Don't crank down too hard, or you risk cracking the plastic.
3. Drop in the 20-Micron Cartridge: Double-check the rubber O-ring.
Unscrew the bottom canister. Slide your 20-micron filter straight into the housing, centering it over the small post at the bottom. Make sure the black rubber O-ring around the top rim sits completely flat. Hand-tighten the canister back onto the lid until it snugs up against the seal.
4. Hook Up the Water Lines: Watch the arrows on the cap.
Look at the top of the filter lid for the stamped IN and OUT indicator markings:
-
Run a hose from the chiller's Water OUT port into the filter's IN port.
-
Run a second hose from the filter's OUT port to the tub's Water IN port.
-
Slip hose clamps over both connections and tighten them down with a screwdriver.
5. Bleed Trapped Air Out: The secret to avoiding chiller errors.
Do not turn on the chiller yet. Air trapped in the filter canister will block water flow and trigger flow errors. Use this two-step fix:
- Gravity Bleed (Power Off): Let water flow from the tub to fill the lines naturally. Press or loosen the air release valve on top of the filter. You will hear air hissing out. The moment water starts bubbling up through the valve, seal it shut.
- Quick Burp (Power On): Turn your pump on. If you hear water sloshing inside the canister, tap the release valve for 1 to 2 seconds while the pump runs to push the last bubbles out.
6. Check for Drips and Run a Flow Test: Final sanity check.
Let water circulate for 2 to 3 minutes without the cooling turned on. Look around all four threaded fittings for any slow drips. Peak into the tub to make sure water is shooting out of the return jet with plenty of pressure, then switch on the chilling function.
3 Costly Mistakes to Avoid
-
Hooking Up the In/Out in Reverse: Pleated cartridges are designed to trap dirt on the outside surface as water flows inward. Hooking it up backward pushes water from the inside out, quickly crushing the cartridge core and killing your water flow.
-
Skipping the Air Bleed: A giant air bubble trapped inside the tall filter housing acts like a sponge, eating up your line pressure. Your cold plunge chiller's water sensor will think there is no water moving and shut down. Bleed the air out every single time you swap a cartridge or empty the tub.
-
Using Ultra-Fine 1-Micron Drinking Filters: Super-dense drinking water filters or solid carbon blocks are made for kitchen sinks, not fast-moving plunge loops. They create too much backpressure, making your pump run hot and tripping error codes. Stick with a 20-micron pleated sediment filter.
When to Clean or Replace the Filter
Cold water slows bacteria, but it also traps body oils and skin flakes that build up over time:
-
When to Swap: Put in a fresh 20-micron cartridge every 4 to 6 weeks for everyday home use (or every 2 to 3 weeks if multiple people use the tub daily).
-
Can You Just Hose It Off? You can spray down the pleats to wash off loose hair in a pinch, but fine 20-micron fibers trap microscopic oils deep inside the fabric. A rinsed filter still restricts water flow more than a fresh one. Swapping in a new cartridge keeps your pump running easy and quiet.
-
Signs It’s Time for a Change: Water coming out of your return jet looks weak, the cartridge pleats look dark gray or brown, or the tub water starts looking dull even after sanitizing.
Stock Up: Keep a 3-pack of replacement filter cartridges near your tub so a dirty filter never interrupts your plunge routine.
